2019 RIDGELINE Crew Cab RTL (AWD) 6-Spd Auto - 49 State Emissions (KA)

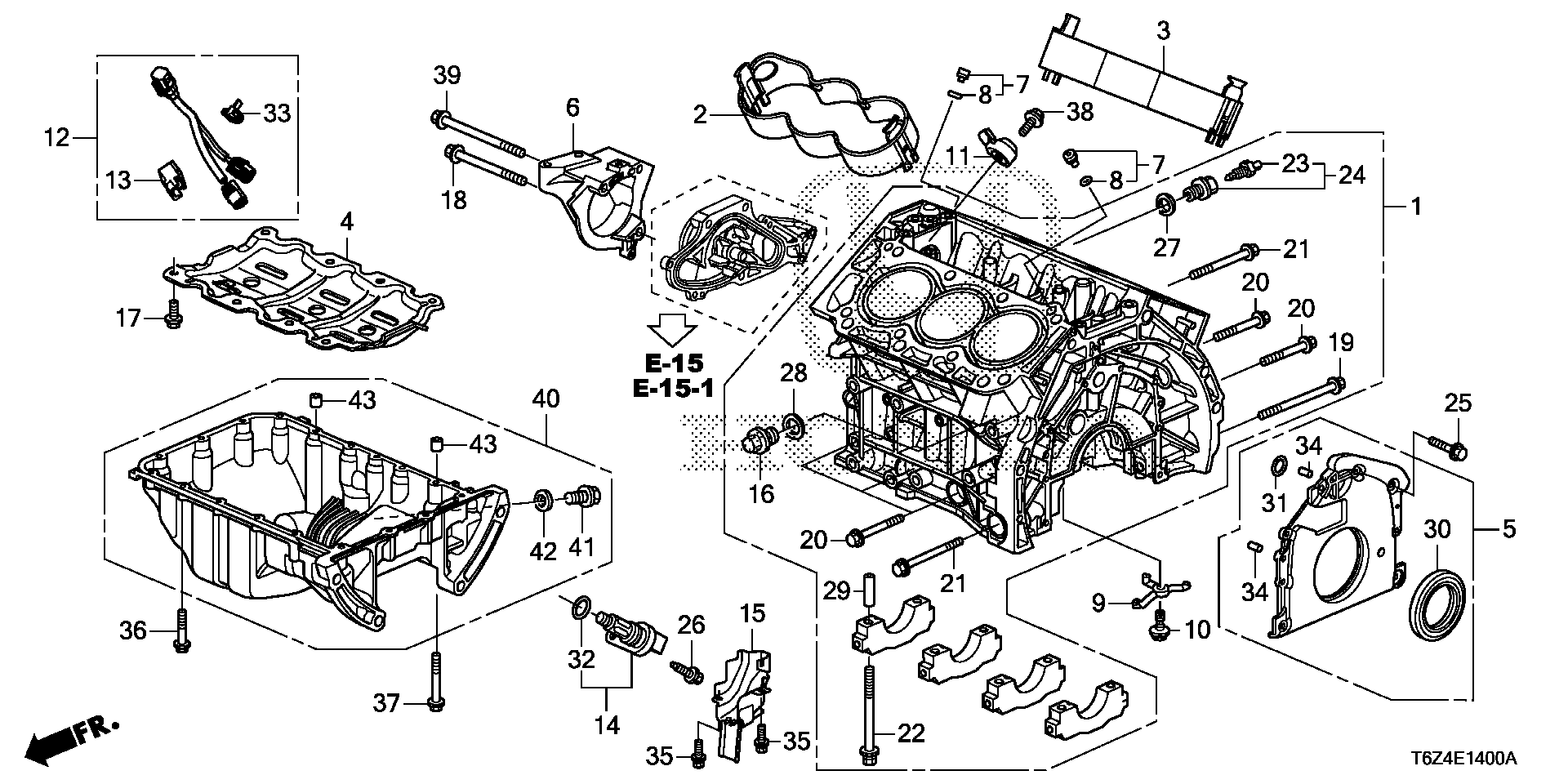

Cylinder Block - Oil Pan

#001

BLOCK ASSY., CYLINDER

Part Number: 11000-5G0-A11

Price: See Price in Cart

Required Qty: 1

#002

SPACER, COOLING CONTROL (FR) (COOLING CONTROL SPACER)

Part Number: 11103-5G0-A00

Price: See Price in Cart

Required Qty: 1

#003

SPACER, COOLING CONTROL (RR) (COOLING CONTROL SPACER)

Part Number: 11104-5G0-A00

Price: See Price in Cart

Required Qty: 1

#004

PLATE, BAFFLE (BAFFLE PLATE)

Part Number: 11221-5G0-A00

Price: See Price in Cart

Required Qty: 1

#005

CASE ASSY., OIL SEAL (ENGINE BLOCK END COVER)

Part Number: 11300-R70-A00

Price: See Price in Cart

Required Qty: 1

#006

BRACKET, ENGINE SIDE MOUNTING (LOWER HALF OF SIDE ENGINE MOUNT BRACKET)

Part Number: 11910-R70-A00

Price: See Price in Cart

Required Qty: 1

#007

ORIFICE ASSY., OIL CONTROL (OIL CONTROL ORIFICE)

Part Number: 15140-P8A-A00

Price: See Price in Cart

Required Qty: 2

#008

O-RING (8.8X2.4)

Part Number: 15142-P8A-A00

Price: See Price in Cart

Required Qty: 2

#009

BODY, OIL JET (OIL JETS)

Part Number: 15280-5J6-A00

Price: See Price in Cart

Required Qty: 3

#010

BOLT, OIL JET (OIL JET BOLTS)

Part Number: 15290-5G0-A00

Price: See Price in Cart

Required Qty: 3

#011

SENSOR, KNOCK (SENSOR 1 (BANK 1) OR KNOCK SENSOR 2 (BANK 2)

Part Number: 30530-R1A-A01

Price: See Price in Cart

Required Qty: 2

#012

HARNESS, KNOCK SENSOR SUB (KNOCK SENSOR SUBHARNESS (JJ)

Part Number: 32113-R9P-A50

Price: See Price in Cart

Required Qty: 1

#013

COVER, RR. (WPC 2P 040 F)

Part Number: 32122-5A2-A01

Price: See Price in Cart

Required Qty: 2

#014

SENSOR ASSY., CRANK (CRANKSHAFT POSITION (CKP) SENSOR)

Part Number: 37500-5J6-A01

Price: See Price in Cart

Required Qty: 1

#015

COVER, CRANK SENSOR

Part Number: 37503-R70-A00

Price: See Price in Cart

Required Qty: 1

#016

BOLT, DRAIN PLUG (28MM) (SEALING BOLT)

Part Number: 90001-PM3-003

Price: See Price in Cart

Required Qty: 1

#017

BOLT-WASHER (6X15)

Part Number: 90001-RKG-000

Price: See Price in Cart

Required Qty: 7

#018

BOLT, FLANGE (10X85)

Part Number: 90002-R70-A00

Price: See Price in Cart

Required Qty: 1

#019

BOLT-WASHER (10X109)

Part Number: 90006-P8A-A01

Price: See Price in Cart

Required Qty: 1

#020

BOLT-WASHER (10X60)

Part Number: 90008-P8A-A01

Price: See Price in Cart

Required Qty: 5

#021

BOLT-WASHER (10X80)

Part Number: 90009-P8A-A01

Price: See Price in Cart

Required Qty: 2

#022

BOLT-WASHER (11X105)

Part Number: 90014-RCA-A01

Price: See Price in Cart

Required Qty: 8

#023

BOLT, BREATHING

Part Number: 90030-PH7-000

Price: See Price in Cart

Required Qty: 1

#024

BOLT, DRAIN PLUG (SEALING BOLT)

Part Number: 90040-P8A-A01

Price: See Price in Cart

Required Qty: 1

#025

BOLT, FLANGE (6X22)

Part Number: 90052-PH7-000

Price: See Price in Cart

Required Qty: 8

#026

BOLT, FLANGE (6X20.5) (GUIDE)

Part Number: 90139-R70-A00

Price: See Price in Cart

Required Qty: 1

#027

WASHER, DRAIN (18MM)

Part Number: 90401-P8A-A00

Price: See Price in Cart

Required Qty: 1

#028

WASHER, SEALING (28MM)

Part Number: 90401-PR4-000

Price: See Price in Cart

Required Qty: 1

#029

PIN, DOWEL (13X37) (DOWEL PINS)

Part Number: 90715-5G0-A00

Price: See Price in Cart

Required Qty: 8

#030

OIL SEAL (80X98X8) (NOK) (TRANSMISSION END CRANKSHAFT OIL SEAL)

Part Number: 91214-RCA-A01

Price: See Price in Cart

Required Qty: 1

#030

OIL SEAL (80X98X8) (NOK) (TRANSMISSION END CRANKSHAFT OIL SEAL)

Part Number: 91214-RKG-003

Price: See Price in Cart

Required Qty: 1

#031

O-RING (26.2X2.4) (YAMADA SOMBOON) (O-RING)

Part Number: 91308-P3R-T01

Price: See Price in Cart

Required Qty: 1

#032

O-RING (15X1.9)

Part Number: 91333-PNA-003

Price: See Price in Cart

Required Qty: 1

#033

CLIP, WIRE HARNESS (110MM) (7MM HOLE) (GREEN)

Part Number: 91507-SL9-003

Price: See Price in Cart

Required Qty: 1

#034

PIN, DOWEL (6X10)

Part Number: 94301-06100

Price: See Price in Cart

Required Qty: 2

#035

BOLT, FLANGE (6X14)

Part Number: 95701-06014-05

Price: See Price in Cart

Required Qty: 2

#036

BOLT, FLANGE (6X32)

Part Number: 95701-06032-08

Price: See Price in Cart

Required Qty: 12

#037

BOLT, FLANGE (6X50)

Part Number: 95701-06050-08

Price: See Price in Cart

Required Qty: 6

#038

BOLT, FLANGE (8X32)

Part Number: 95701-08032-08

Price: See Price in Cart

Required Qty: 2

#039

BOLT, FLANGE (10X105)

Part Number: 95801-10105-08

Price: See Price in Cart

Required Qty: 2

#040

PAN, OIL (OIL PAN)

Part Number: 11200-5J6-A01

Price: See Price in Cart

Required Qty: 1

#041

BOLT, PLUG (14MM) (DRAIN BOLT)

Part Number: 90009-R70-A00

Price: See Price in Cart

Required Qty: 1

#042

WASHER, DRAIN PLUG (14MM) (WASHER)

Part Number: 94109-14000

Price: See Price in Cart

Required Qty: 1

#043

PIN, DOWEL (8X14)

Part Number: 94301-08140

Price: See Price in Cart

Required Qty: 2
